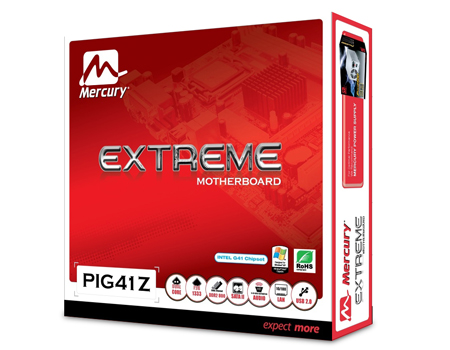

PIG41Z
Designed for latest Intel® Core 2 Quad/Core 2 Duo Processors, Supports FSB 1333/1066/800 MHz
Specifications
| CPU | LGA775 Socket for Core 2 Quad/Core 2 Duo/ Pentium / Dual Core / Celeron Dual Core / Celeron 400 series processors LGA775 next generation 45nm multi-core processors |
| Chipset | Intel® G41/ICH7 Chipset Supports DirectX10. |
| FSB | 1333/1066/800 MHz |
| Memory | 2XDDR2 800/667 MHZ SDRAM (8GB MAX) 2XDDR3 1066/800/667 MHZ SDRAM (4GB MAX) |
| Expansion Slots | One PCI Express x16 slot (PCI Express Bus SPEC V1.0 compliant). Two 32-bit v2.3 master PCI bus slots. Support 3.3v/5v PCI bus interface. |
| LAN | Supports 10/100 Fast Ethernet by Realtek® RTL8100c or 8102EL Supports 10/100/1000 Fast Ethernet by Realtek® RTL8111DL(optional) |
| Audio | Chipset integrated by Realtek® ALC662 Flexible 5.1-channel audio with jack sensing Compliant with Azalia 1.0 Spec Meet Microsoft Vista Premium spec |
| IDE/SATA | One Ultra DMA 66/100/133 IDE controller integrated in Intel® ICH7. Supports PIO, Bus Master operation modes. Can connect up to Four Ultra SATA drives. |
| Back Panel I/O Ports | 1 x PS/2 keyboard 1 x PS/2 mouse 1 x Parallel port 1 x Serial port (COM 1) 1 x Graphics Card port 1 x 3 in 1 audio jack 2 x USB 2.0 ports 1 x RJ45 LAN jack |
| Internal I/O Connectors | ATX 24-Pin power connector 4-pin ATX 12V power connector CPU x1/ System x2 FAN connectors CD-in connector Front panel audio connector Front panel connector 2 x USB 2.0 connectors 1 x Floppy disk drive connector 4 x Serial ATAII connectors 1 x ATA100 connector Clear CMOS Jumper |
| Form Factor | Micro-ATX (24 cm X 16.8 cm) |
