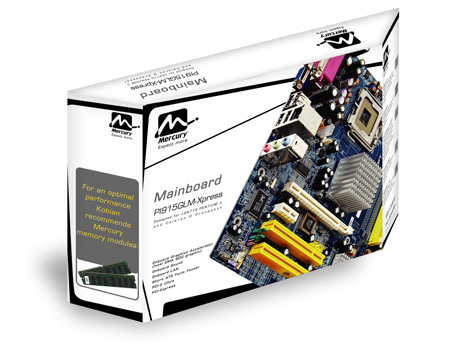

PI915GLM-Express
Intel Pentium 4 (775 pins) Mainboard with Intel 915GL
Specifications
Designed for LGA775 Pentium 4 / Celeron D Processor
Onboard Graphics Accelerator (Intel GMA 900 graphic)
Onboard Sound
Onboard LAN
Micro ATX Form Factor
PCI-E Ultra
PCI-Express
Without CNR slot
| Description | Intel Pentium 4 (775 pins) Mainboard with Intel 915GL |
| CPU | LGA 775 socket for latest Intel Pentium 4/ Celeron D Processor |
| FSB | 800Mhz |
| Chipset | Intel 915GL / ICH6 |
| Memory | 2 DIMM DDR Sockets Two 184 PIN DDR 400 Max: 2GB |
| VGA | Intel GMA 900 graphics |
| Expansion Slots | 1 x PCI-E Pro 1 x PCI Exp. 2 x PCI slots |
| LAN | Realtek RTL8100C |
| Audio | Realtek / AC'97 |
| IDE | 1 x Ultra DMA 100 / 66 |
| Back Panel I/O Ports | 1 x PS/2 keyboard 1 x PS/2 MO 1 x Parallel Port 1 x Serial Port 1 x VGA Port 1 x RJ 45 Port 4 x USB 2.0 Ports 1 x Audio |
| System BIOS | AMI 4Mb Flash ROM |
| Form Factor | Micro-ATX |
| WHQL | No |
| Special Support Features | SATA Support |
