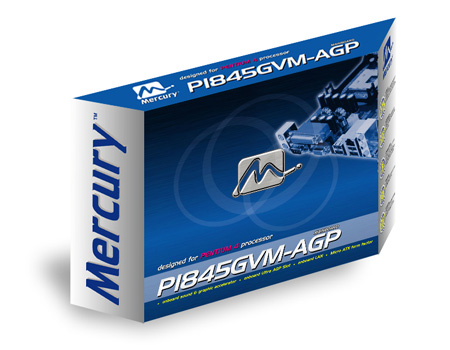

PI845GVM-AGP V1.0
Intel Pentium 4 (478 pins) Mainboard w/ Intel 845GV
Specifications
--
| Back Panel I/O Ports | - 1 x PS/2 keyboard - 1 x PS/2 Mouse - 1 x Parallel Port - 1 x Serial Port - 1 x VGA port - 4 x USB 2.0 Ports - 1 x RJ45 Port - 1 x Audio I/O (Line-in, Line-out and Mic-in) |
| IDE | - 2 x Ultra DMA 100/66/33 Connectors |
| Form Factor | - Micro-ATX Form Factor, 244x220mm |
| FSB | - 533/400 MHz |
| Chipset | - 845GV/ICH4 |
| VGA | - Embedded Intel Extreme 3D Graphics w/ 32M share memory |
| Memory | - 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR333/266) - Maximum: 2GB |
| Expansion Slots | - 1 x AGP Ultra - 3 x PCI - 1 x CNR |
| LAN | - SiS 900 10/100 Mbps Fast Ethernet controller |
| Audio | - C-Media CMI9761A 6-channel audio Codec - Compliant with AC'97 2.3 specification |
| CPU | - Socket 478 for Intel Pentium 4, HT & Prescott processor |
| Description | - Intel Pentium 4 (478 pins) Mainboard w/ Intel 845GV |
| Internal I/O Connectors & Headers | - 20-pin ATX Power Supply connector ; 4-pin 12V connector - 360K~2.88M Byte, 3 Mode FDDs or LS120 - 1 x IrDA for SIR header - 1 x USB header support additional 2 USB2.0 ports - 1 x Front panel switch/LED header - 1 x USB card reader header - CPU / CHS FAN headers - 1 x CD in header - 1 x Front panel audio header - 1 x Speaker header |
| System BIOS | - AMI 2Mb Flash ROM - Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI - Full support for ACPI revision 1.0 specification |
