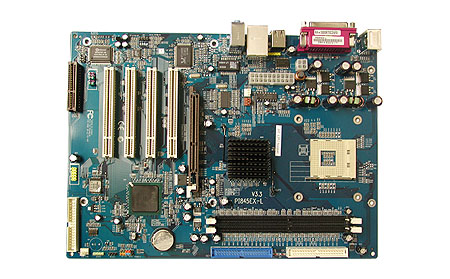

PI845EX-L
Intel Pentium 4 (478 pins) Mainboard w/ Intel 845E
Specifications
FSB up to 800/533/400 MHz (FSB 800 by overclocking), Onboard AC97 Audio, USB 2.0 & LAN (Optional), 2x184 Pin DIMM (DDR SDRAM), 2 GB max, 1x4xAGP, 4xPCI, 1xCNR, 56k Modem (CNR), ATX
| Description | - Intel Pentium 4 (478 pins) Mainboard w/ Intel 845E |
| Processors | - One Socket 478 supports the * Intel Pentium 4 processor * Up to 800 / 533 / 400MHz FSB (FSB 800 by overclocking) * Supports Hyper Threading technology |
| Chipset | - Intel 82845E (MCH) & 82801DB (ICH4) - Super I/O: Winbond W83637HF - LAN: RealTek RTL8100/B 10/100 Mbps PCI LAN Chip |
| System BIOS | - Award 2Mb BIOS with Flash ROM in Firmware Hub (FWH) |
| Memory | - Two DDR DIMMs - Support DDR 400* / 333* / 266 / 200 - Maximum: 2GB Notice: The DDR 333 / 400MHz is only done by the overclocking technique and goes with FSB 800MHz |
| I/O Interface | - Back Panel I/O Ports * PS/2 keyboard and PS/2 mouse connectors * Four USB 2.0 and an optional LAN connector * One Parallel port * Two Serial ports * Audio ports (Line-in, Line-out and Game port) - Dual Ultra DMA 100/66 - 20-pin and 4-pin ATX Power connector - Ports, headers and others * Front Panel MIC / Speaker out header * Wake on LAN / Modem header * CPU / Power / CASFAN connectors |
| RTC & Battery | - Intel I/O Controller Hub 4 (ICH4) included 256 bytes CMOS SRAM - With CMOS SRAM hardware clear jumper |
| Expansion Slots | - 4 PCI slots, 1 AGP slot, 1 CNR slot |
| Form Factor & Layers | - ATX Size (305mm*220mm), 4 Layers |
| Special Features | - FSB 800MHz * Support the latest 800MHz front side bus Intel Pentium 4 CPU with the state-of-the-art overclocking technology - Accelerator onboard * You can use the Accelerator jumper to select the Front-Side Bus frequency of the CPU, and accelerate the speed to 800MHz by overclocking - LAN / Modem Wake Up * Users can power on their PCs by MODEM or special LAN Card with this function - USB 2.0 * Integrated USB 2.0 controller in ICH4, this board provides the data transfers of 480Mbps to satisfy the most demanding peripheral and applications in today\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\'s PC market |
