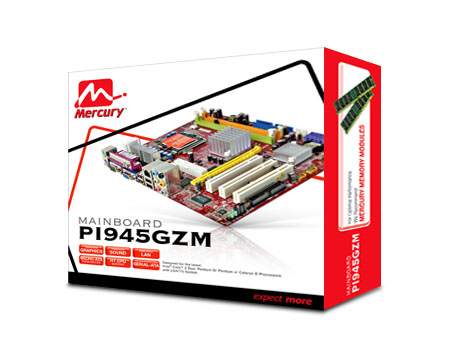

PI945GZM V2.2
Designed for Intel Core2 Duo/ Pemtium D/ Pemtium 4 / Celeron D Presott
Specifications
| CPU | Intel® Core2 Duo/ Pemtium D/ Pemtium 4 / Celeron D Presott LGA775 processors in LGA775 package. |
| FSB | FSB Supported 800/ 533 MHz |
| Chipset | Intel® 945GZ & ICH7 North Bridge: Intel® 945GZ chipset South Bridge: Intel® ICH7 chipset |
| Memory | DDRII 533/400 SDRAM (2GB Max) |
| Expansion Slot | 1 PCI Express x16 slot (PCI Express x4 signal from ICH7) 3 PCI slots |
| Storage | Supported by Intel®ICH7 2 x Ultra DMA100/66 devices 4 x Serial ATA2 devices |
| Audio | Realtek ALC880 8-channel audio CODEC |
| IEEE 1394a | VIA® VT6307, support 2x IEEE1394a ports |
| LAN | Supports PCI Express LAN 8100C(10/100) or 8110SC(10/100/1000) |
| Rear Panel I/O | 1 PS/2 mouse port & 1 PS/2 keyboard port 1 serial port (COM1) 1 VGA port 1 parallel port supporting SPP/EPP/ECP mode 4 USB 2.0 Ports 1 LAN jack (10/100) 6 flexible audio jacks |
| Internal I/O Connectors & Headers | 1 x 24-pin ATX Power Supply connector 1 x 4-pin ATX 12V connector 1 x FDD connector supports two 360K~2.88MB FDDs 1 x IDE connector 4 x Serial ATA connectors 2 x USB 2.0 headers support additional 4 USB Ports 2 USB 2.0 pinheaders |
| System Bios | AMI BIOS with 4Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Supports ACPI revision 1.0 specification |
| Form Factor | Micro-ATX (24.5cm X 22.5 cm) |
