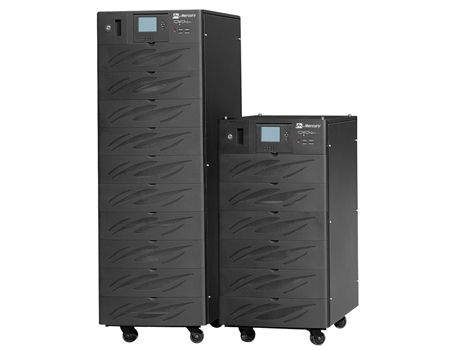

HP (20-80KVA)
HP (20-80KVA)
Specifications
• Intelligent Battery Management
• Double Conversion Online Technology
• Load Bus Synchronization (LBS) Function To Protect Your Investment
• Advanced IGBT Rectifier To Have Low THDi and High PF
• Provide LCD Indication and Audible Alarm Function
• Front Accessible Module Design For Ease Of Maintenance
• Wide Input Voltage Range
• Flexibility Of Configurable Battery Quantity
• Parallel Redundancy
• Surge, Short Circuit and Overload Protection
• Low Audible Noise
• Low Output Voltage
• Cold Start
• ECO Mode
| Output | : |
| Phase | 3 Phase 4 Wire (3ph+N) |
| Rated Voltage | 380 / 400 / 415VAC |
| Rated Power Factor | 0.8 |
| Frequency | 50Hz/60Hz ±0.5Hz (Battery Mode) 50/60 (1±1/2/4/5%)Hz (On-Line) |
| Voltage Precision | Output Balanceable:±1.0% |
| THD | Linear Load: 2.0% |
| Overload Capability | 110% for 60mins |
| Crest Factor | 03:01:00 |
| Waveform | Sine Wave |
| DC Component | 500mVDC |
| Output Current | 24A / 36A / 48A / 72A / 96A (380V - Full Load) 23A / 35A / 46A / 70A / 94A (400V - Full Load) 22A / 33A / 44A / 66A / 88A (415V - Full Load) |
| Input | : |
| Rated Voltage | 380 / 400 / 415VAC |
| Voltage Range | Po69%: 208±5VAC~478±5VAC Po69%: 304±5VAC~478±5VAC |
| Frequency | 40±0.5Hz~70±0.5Hz |
| Input Phase | 3 Phase 4 Wire (3ph+N) |
| THDi | Input THD1.0%, Linear Load: 3.0% Input THD1.0%, Non-Linear Load: 7.0% |
| Power Factor | >0.99 |
| Battery | : |
| Model | Sealed Lead Acid Battery (VRLA) |
| Configurable Battery | 32 / 34 / 36 / 38 / 40 pcs |
| Discharge Current (320VDC) | 54A / 81A / 106A / 160A / 213A |
| Charge Current (Max) | 20/30KVA 40/60/80KVA 15A 30A |
| System | : |
| Efficiency | 90% (Line Mode) 93% 20/30KVA , 94% 40/60/80KVA (Battery Mode) 97% (ECO Mode) |
| Wasting | 3% (Line Mode) 2% (ECO) |
| Noise at 1M | <56dB |
| Running Temperature | 0~40ËšC |
| Relative Humidity | 0%RH~95%RH (Non-condensing) |
| Altitude | 1000m Output Normal Power |
| Display | LCD+LED |
| Breaker/ Fuse | 40A / 63A / 80A / 125A / 160A |
| Remote Signaling | Dry Contact |
| Communication | RS232/RS485/SNMP |
| MTBF | Inverter MTBF >50,000 Hours Single Modules MTBF >250,000 Hours 1+1 Expandable Modules MTBF >400,000 Hours |
| MTTR | The MTTR of Each Single UPS Modules is Lower 30mins |
| Dielectric Resistance | > 2MΩ (500VDC) |
| Dielectric Strength | 2820VDC, Leak Current<3.5mA, 1min |
| Vibration Impact | Fulfill standard ISTA (International Safe Transmission Association) 1B |
| Transportation | Fulfill standard ISTA (International Safe Transmission Association) 1B |
| Degree Of Protection | Ip20 |
| Net/Gross Weight (kg) | 186/226, 192/232, 203/243, 280/328, 289/357 |
| Dimension(WxDxH) mm | 20/30/40KVA 60/80KVA 600 x 730 x 1200 600 x 730 x 1800 |
| Packaging(WxDxH) mm | 20/30/40KVA 60/80KVA 735 x 845 x 1390 735 x 845 x 1990 |
| Bypass | : |
| Voltage Range | 380V 208/266/304±5VAC~399/418/437/475±5VAC 400V 220/280/320±5VAC~420/440/460±5VAC 415V 228/290/332±5VAC~436/457/477±5VAC |
| Frequency Range | 50(1±10%)Hz / 60(1±10%)Hz |
| Phase | 3 Phase 4 Wire (3ph+N) |
| Overload Capability | 125%~170% for 10mins |
| Eco Mode | : |
| Voltage Range | 380V 304±5VAC~399 / 418±5VAC 400V 320±5VAC~420 / 440±5VAC 415V 332±5VAC~436 / 457±5VAC |
| Frequency Range | 50(1±10%)Hz / 60(1±10%)Hz |
| Phase | 3 Phase 4 Wire (3ph+N) |
| Capacity | 20KVA / 30KVA / 40KVA / 60KVA / 80KVA |
| Model | Hi20 / Hi30 / Hi40 / Hi60 / Hi80 |
| Power | 16KW / 24KW / 32KW / 48KW / 64KW |
| Maximum Input Current | 40A / 63A / 80A / 125A / 160A |
