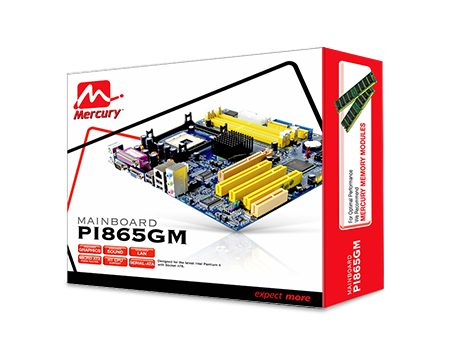

PI865GM v5.0A
Designed for Socket 478 for Intel Pentium 4 processor
Specifications
FSB 800
Supports the 800MHz front side bus Intel Pentium 4 CPU.
Dual DDR400
Doubles the bandwidth of your system memory up to 6.4GB/s and pumps up the system performance.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
Serial ATA
Serial ATA is a revolutionary replacement of ATA technology that provides superior performance. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
USB 2.0
USB2.0 is the latest connectivity standard which delivers
transfer speed up to 480Mb/s for easy connectivity and ultrafast data transfers.
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA100
Supports Ultra DMA 33/66/100 IDE devices, data transfer rate up to 100MB/s
| CPU | Socket 478 for Intel Pentium 4 processor |
| FSB | 800/533/400 MHz |
| Chipset | Intel 865GV & ICH5 |
| VGA | Integrated Intel Extreme Graphics II |
| Memory | • 3 x 184-pin DDR DIMM socket support 2+1 Dual channel DDR SDRAMS • Support DDR400/333/266 2.5V DDR SDRAM |
| Expansion Slots | • 1 x AGP Ultra • 3 x PCI • 1 x CNR |
| LAN | Realtek RTL8100C 10/100 Mbps Fast Ethernet controller |
| IDE | 2 x Ultra DMA 100/66 |
| Back Panel I/O Ports | • 1 x PS/2 keyboard • 1 x PS/2 mouse • 1 x Parallel Port • 1 x Serial Port • 1 x VGA Port • 4 x USB 2.0 Ports • 1 x RJ 45 Port • 1 x Audio I/O (Line-in, Line-out and Mic-in) |
| Internal I/O Connectors & Headers | • 20-pin ATX Power Supply connector • 4-pin ATX 12V Power Supply connector • 2 x USB header support additional 4 USB2.0 ports • 2 x Serial ATA connectors • 1 x Front panel switch/LED header • 1 x Front panel audio header • CPU / PWR/ SYS FAN headers • 1 x IrDA for SIR header • 1 x Speaker header • 1 x CD in header • 1 x Floppy connector - supports 360K~2.88MB FDDS |
| System BIOS | • AMI 4Mb Flash ROM • Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI • Full support for ACPI revision 1.0 specification |
| Form Factor | Micro ATX Form Factor, 244x244mm |
