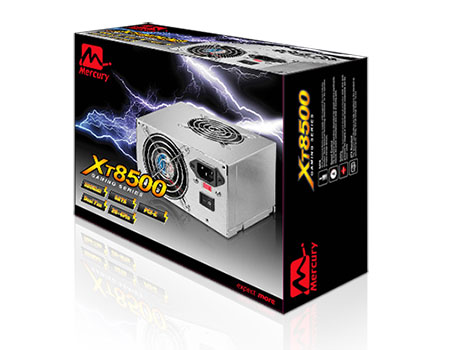

XT 8500
Gaming Series
Specifications
Complies with ATX / ATX 12V ver.2.2
Thermal Fan-speed Control
With 80 x 80 x 25mm Cooling Fan
Dimension(L x W x H) : 150 x 140 x 86mm
| INPUT ( EN ) | -- |
| Input Range | 90V~132Vac or 180V~253Vac |
| Frequency | 47~63Hz |
| Input Current | 10A/6A for 115/230Vac |
| Efficiency | 65% at full load, nominal line |
| Inrush Current | The maximum inrush current shall be less than 60A peak from a cold start at any line voltage |
| OUTPUT ( EN ) | -- |
| Max | 500W |
| Hold Up Time | >12ms at full load, nominal line |
| Rise Time | <20ms at full load, nominal line |
| Over Voltage Protection | +3.3V, +5V, +12V |
| Over Power Protection | 120%~160% |
| Short Circuit | Latch Off |
| Power Good Signal | TTL compatible |
