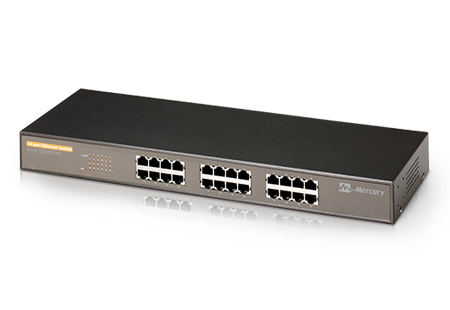

Ethernet Switch
24-port 10/100Mbps Fast Ethernet Switch
Specifications
Mercury Full Duplex Ethernet Switch is a full-featured Ethernet Switch that provides Ethernet direct connection to local area network or individual PC with build-in 24-port Switch. Mercury Full Duplex Ethernet Switch uses advanced Ethernet chipset solution with complete set of industry standard features for high-speed Internet access. Ethernet Switch offers easy installation and cost-effective connection for corporate users.
All Mercury products are made in ISO9001 approved factory. Mercury Ethernet Switch complies with FCC part15 regulations and CE approval.
Features and Bene��?ts
• Supports 24 10M/100M auto-detect Half/Full duplex switch ports
• Supports 802.3x flow control for full-duplex mode and collision-based backpressure for half-duplex mode
• High performance switching engine performs forwarding and filtering at full wire speed
• Supports Non-blocking Store & Forward architecture
• Supports self-learning and address recognition mechanism enables forwarding rate at wire speed
| Data Transfer Rates | 10Mbps and 100Mbps |
| Protocol | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Full Duplex Flow Control |
| Connector | RJ-45 x 24 |
| Power Consumption | 16W |
| Dimensions (app.) | 440mm (length) x 141mm (width) x 44mm (height) |
| Net Weight (app.) | 1500g |
| Power Supply | AC 100~240V 50/60Hz, internal universal power |
| Operating Temperature | 0°C ~ 40°C (32° ~ 104°F) ambient |
| Humidity | 10 % ~ 90 % (non-condensing) |
| Storage Temperature | -10°C ~ 55°C (14° ~ 131°F) |
| Regulations | FCC part 15 Class A, CE, RoHS compliant |
