ELITE 150
ELITE 150
Overview
The operating environment temperature above 40℃ should be avoided ,After long term storage, The battery actual capacity would be less than the rated capacity. Full capacity will be obtained through several charge/discharge cycles. To get the longest life, Mercury battery should be fully charged before storage.
Specifications
| Nominal Voltage | 12V |
| Rated Capacity (20 hour rate) | 150Ah |
| Dimensions | : |
| Total Height (with terminals) | 8.70 inches(221mm) |
| Height | 8.50 inches(216mm) |
| length | 20.94 inches(532mm) |
| width | 8.15 inches(207mm) |
| Weight | Approx.105.2 Pound(47.8kg) |
| Characteristics | : |

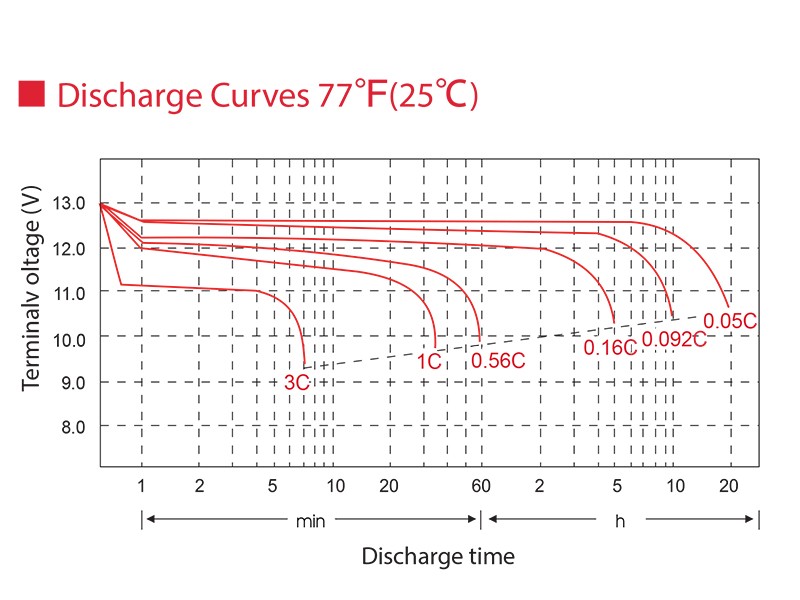

| Capacity 77℉(25℃) | : |
| 20 hour rate (7.5A) | 150 Ah |
| 10 hour rate (13.8A) | 138 Ah |
| 5 hour rate (24.0A) | 120 Ah |
| 1hour rate (90.0A) | 90 Ah |
| 15Minute Rate (246A) | 61.5 Ah |
| Internal Resistance | : |
| Full charged Battery 77℉(25℃) | 3 MΩ |

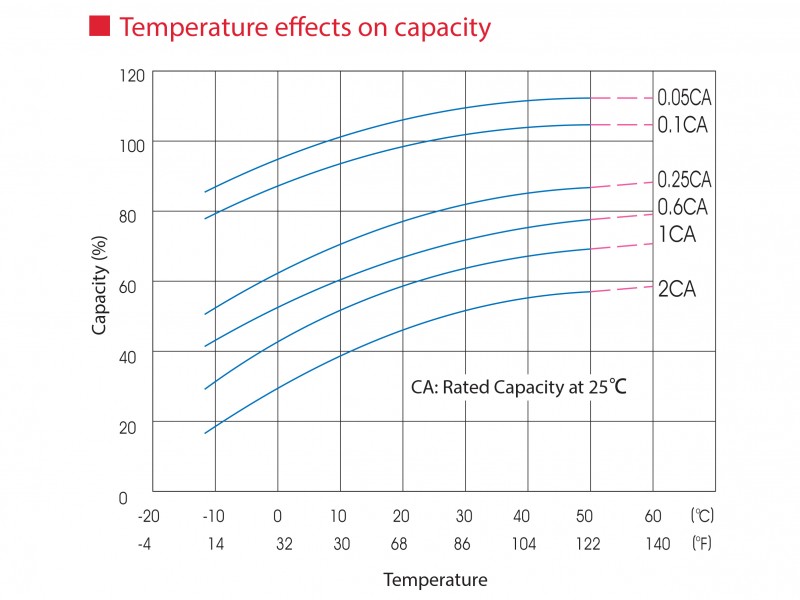

| Capacity affected by Temperature (20hour rate) | : |
| 104℉(40℃) | 102% |
| 77℉(25℃) 100% | 32 |
| ℉(0℃) 85% | . |
| 5℉(-15℃) | 65% |

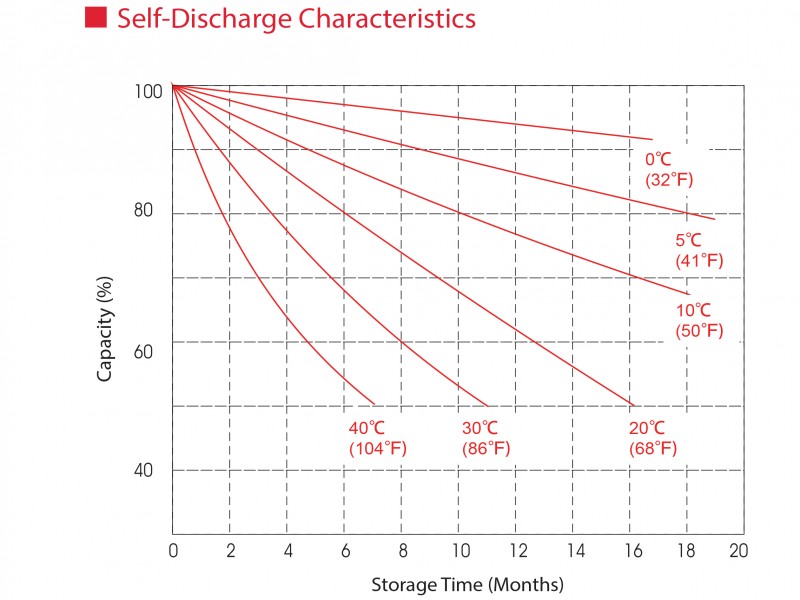

| Self-Discharge 77℉(25℃) | : |
| Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 81% |
| Capacity after 12 month storage | 60% |
| Max. Discharge Current 77℉(25℃) | 1000A(5S) |
| Terminal | M5 |

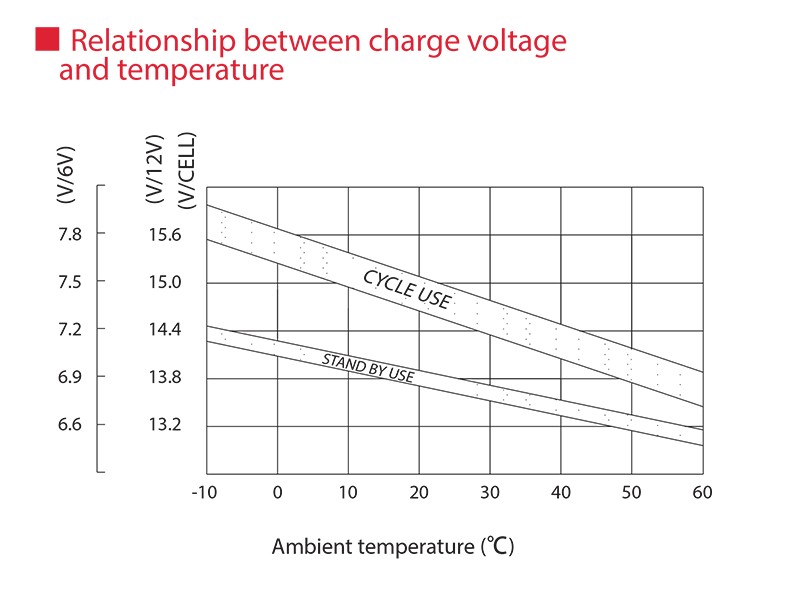

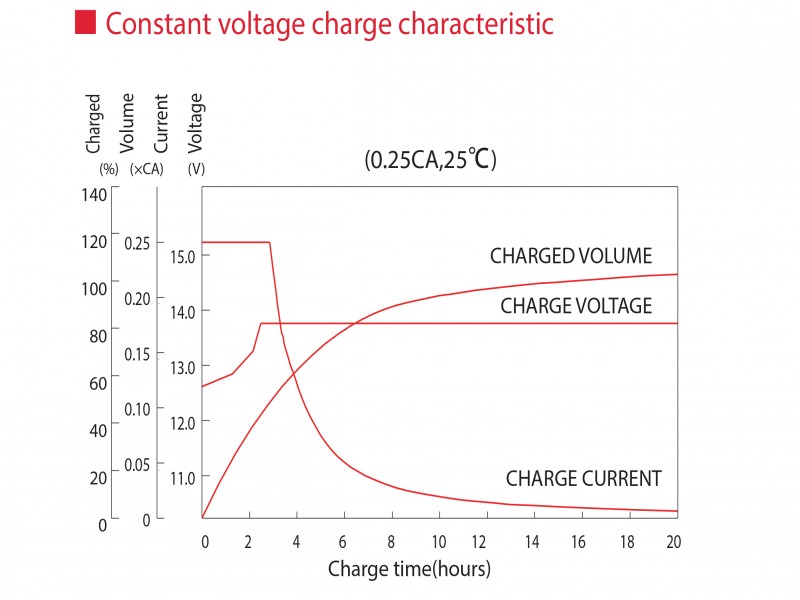

| (Constant Voltage) | : |
| Cycle | Initial Charging Current less than 30A Voltage 14.4~14.7 V / 77℉(25℃) |
| Float | Voltage 13.5~13.8V / 77℉(25℃) |
